ITI LIMITED
(A Government of India Undertaking)

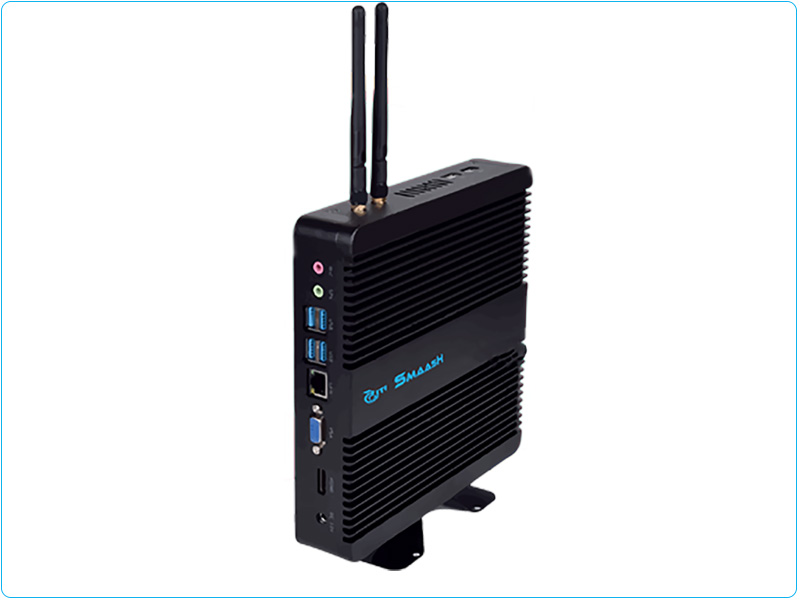

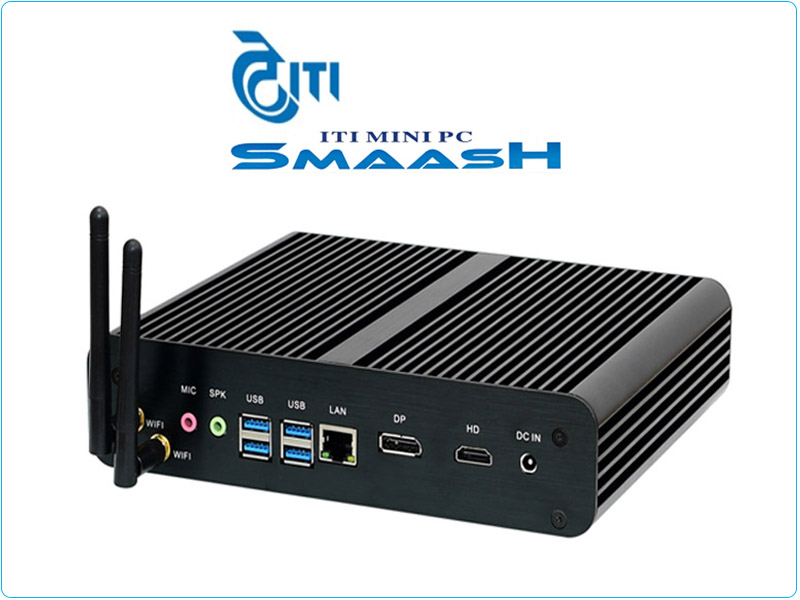

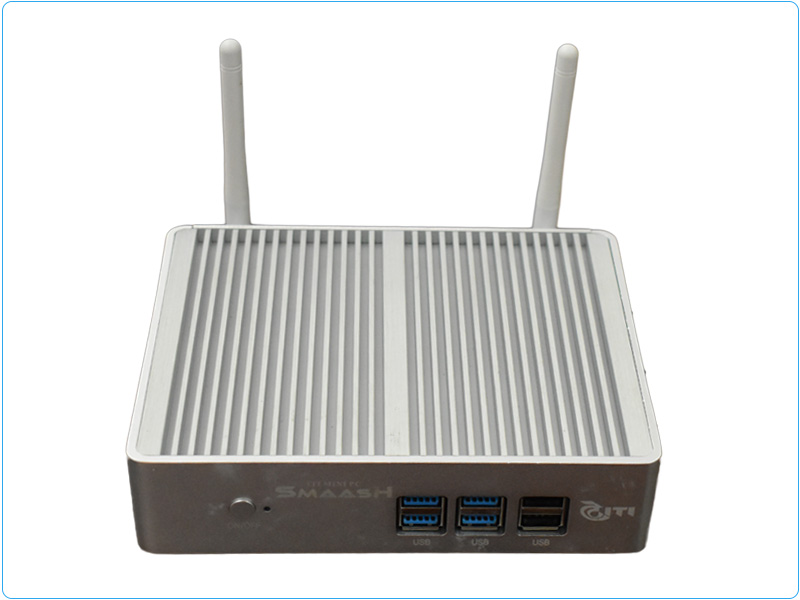

| Celeron ITI Mini PC Smaash - Specification | |
|---|---|
| CPU | Onboard Intel J1800 2GHz Quad Core Four Thread Max 2.41GHz processor |
| Core (FSB) | 100MHz |
| Lithography | 22nm |
| Max TDP | 10W |
| L2 Cache | 2MB |
| Instruction Set | 64-bit |
| Memory | 4 GB |
| Memory Type | DDR3L-1066/1333 SDRAM, 4GB(Low Voltage 1.35V) |
| Storage Controller | 1* Serial SATA /1* Mini-SATA |
| Storage Disk | 64 GB SSD/500 GB SATA |
| Operating System Supported | Windows 10/Windows 8/ Linux |
| Audio | HD Audio CODEC |
| Network | 10/100Mbps/1000Mbps BaseT LAN WiFi with dual antenna |
| Video | Intel HD Graphics support VGA and HDMI full screen HD playback |
| Monitor | 18.5 " LED Monitor |
| Keyboard /Mouse | USB Keyboard and Mouse |
| Warranty | 3 Years |
| Core i3 ITI Mini PC Smaash - Specification | |
|---|---|
| Processor | Onboard Intel Core i3 5005U /5010 U ,2GHz/2.1 Ghz Dual Core 4 thread |
| Operating System Supported | Windows 10/ Windows 7/ Windows 8/ Linux |
| Storage | SSD: 64GB/500 GB SATA |
| Memory | 8GB DDR3L Ram |
| Memory Type | DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |
| Motherboard | Intel SHARKBAY(Intel Haswell-ULT) |
| Processor details | |
| CPU | Intel Core i3 5005U/5010 U |
| Clock Speed | 2.0GHz/2.1 Ghz |
| Processor Number | 2 core/ 4 threads |
| Core code | Broadwell |
| Technique | 14nm |
| L1 data cache | 2 * 32 KB, 8-Way, 64 byte lines |
| L2 code cache | 2 * 32 KB, 8-Way, 64 byte lines |
| L3 cache | 3 MB, 12-Way, 64 byte lines |
| Graphic Cards | Intel Broadwell- ULT Integrated Graphics Controller Intel HD Graphics 5500 |
| Audio Cards | ALC662 sound chip |
| Network card | RTL8168E PCI-E Gigabit Ethernet NIC |
| Ethernet | 10/100/1000 BaseT LAN |
| WIFI | With dual antenna, 802.11.b/g/n |
| Display port | 1* VGA + 1 * HDMI |
| USB port | 4* USB 3.0, 2 * USB2.0 |
| SATA port | 1 * MSATA3.0, 6Gb/s; |
| MINI PCIE | 1 * MSATA SSD, 1 * WiFi module |
| Ethernet port | RJ45 10/100/1000 Mbps Adaptive |
| Monitor | 18.5 " LED Monitor |
| Keyboard /Mouse | USB Keyboard and Mouse |
| Warranty | 3 Years |
| Core i5 ITI Mini PC Smaash - Specification | |
|---|---|
| CPU | Onboard Intel Core i5-6200U 2.3GHz Max 2.8GHz Dual Core Four Thread processor |
| Core (FSB) | 100MHz |
| CPU Technique | 14nm |
| L3 Cache | 3MB SmartCache, CPU Integrated |
| BIOS | AMI BIOS, ACPI supported Support Wake-On-LAN |
| Chipset | Intel Skylake-U |
| Memory | 2* SO-DIMM DDR3L Slot 8GB RAM |
| Storage | 64GB SSD/500 GB SATA |
| Operating System Supported | Windows 7/Windows 8/Windows 10/Linux |
| Audio | ALC897 chip, Intel Lynx Point-LP HDA |
| Network | Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel HD Graphics 520(300~1GHz) |
| Front panel ports | 1* Power indicator and switch, 4*USB3.0, 1*HDMI, 1*VGA, 1*LAN, 1*MIC, 1*SPK |
| Backside ports | 1* SD Card, 1*USB2.0, 2*WiFi antennas |
| Internal ports | 1*M-SATA3.0 port, support 6Gb/s 2*SATA3.0 port, support 6Gb/s 1*mini-PCIE port(WIFI&Bluetooth) |
| Monitor | 18.5 " LED Monitor |
| Keyboard /Mouse | USB Keyboard and Mouse |
| Warranty | 3 Years |
| Core i7 ITI Mini PC Smaash - Specification | |
|---|---|
| CPU | Onboard Intel Core i5-6500U 2.5GHz Max 3.1 GHz Dual Core Four Thread processor |
| Core (FSB) | 100MHz |
| CPU Technique | 14nm |
| L3 Cache | 4 MB SmartCache, CPU Integrated |
| BIOS | AMI BIOS, ACPI supported Support Wake-On-LAN |
| Chipset | Intel Skylake-U |
| Memory | 2* SO-DIMM DDR3L Slot 8GB RAM |
| Storage | 64GB SSD/500 GB SATA |
| Operating System Supported | Windows 7/Windows 8/Windows 10/Linux |
| Audio | ALC897 chip, Intel Lynx Point-LP HDA |
| Network | Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel HD Graphics 520(300~1GHz) |
| Front panel ports | 1* Power indicator and switch, 4*USB3.0, 1*HDMI, 1*VGA, 1*LAN, 1*MIC, 1*SPK |
| Backside ports | 1* SD Card, 1*USB2.0, 2*WiFi antennas |
| Internal ports | 1*M-SATA3.0 port, support 6Gb/s 2*SATA3.0 port, support 6Gb/s 1*mini-PCIE port(WIFI&Bluetooth) |
| Monitor | 18.5 " LED Monitor |
| Keyboard /Mouse | USB Keyboard and Mouse |
| Warranty | 3 Years |
